Cisco 32 Gbps Fibre Channel SFP+ Transceivers Empowering High-Speed Connectivity

Name: Cisco 32 Gbps Fibre Channel SFP+ Transceivers Empowering High-Speed Connectivity
Brand: Xiamen Sunrise Automation Technology Co., Ltd
SKU: DS-SFP-FC32G-SW
Price: 125 USD
Availability: InStock

Brand Name:	Cisco
Model Number:	DS-SFP-FC32G-SW
MOQ:	2
Price:	$125
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Packaging Details:

Packaging and delivery Selling Units: Single item Single package size: 6X6X6 cm Single gross weight: 1.000 kg

Supply Ability:

100

Highlight:

Fibre Channel SFP+ Transceivers

32 Gbps Fibre Channel SFP+ Transceivers

Product Description

Product Description:

In the dynamic realm of data center networking, the Cisco 32 Gbps Fibre Channel SFP+ transceivers emerge as a pivotal solution, specifically designed to facilitate seamless and high-performance Fibre Channel connections on the MDS 9000 series platforms. These transceivers are engineered to meet the ever-growing demands of modern data centers, providing a reliable and efficient means of transmitting data at speeds of up to 32 Gbps.

Dual Options for Diverse Needs:

Cisco offers two distinct types of 32 Gbps Fibre Channel SFP+ transceivers, each tailored to specific application requirements:

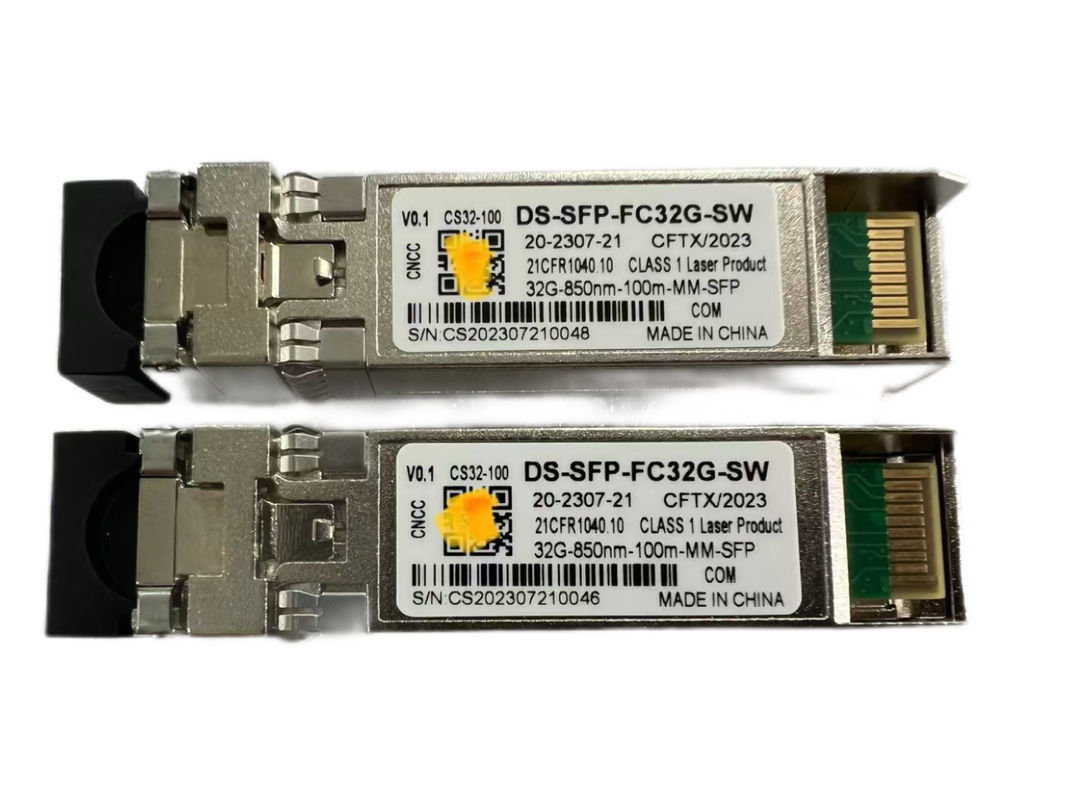

Cisco Fibre Channel Short-Wave SFP+ (Part Number: DS-SFP-FC32G-SW): Ideal for short-reach applications, this transceiver utilizes a short-wave laser operating at a wavelength of 850 nm. It is optimized for use with Multi-Mode Fiber (MMF) cables, enabling cost-effective and high-speed connections over relatively short distances.

Cisco Fibre Channel Long-Wave SFP+ (Part Number: DS-SFP-FC32G-LW): Designed for long-reach deployments, the long-wave transceiver employs a long-wave laser with a wavelength of 1310 nm or 1550 nm. This makes it suitable for Single-Mode Fiber (SMF) cables, allowing for reliable data transmission over extended distances, often required in enterprise-wide or metropolitan area network (MAN) scenarios.

Key Specifications for Unmatched Performance:

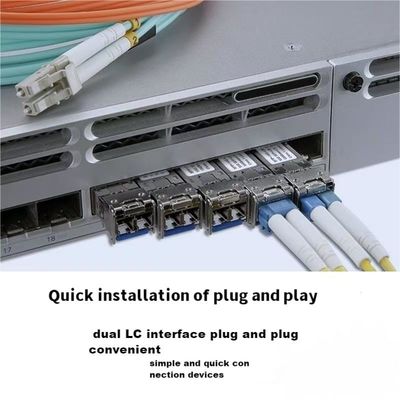

Connector Type: Both transceiver types feature dual LC connectors, ensuring a secure and standardized connection interface. The LC connector is widely recognized for its compact size, high-density capabilities, and ease of installation, making it an ideal choice for modern data center environments.

Cable Compatibility:

Short-Wave Transceiver (DS-SFP-FC32G-SW):

MMF Cable Distance:

At 28.05 GBd:

OM2 cable supports up to 65 feet (20 meters).

OM3 cable extends the reach to 230 feet (70 meters).

OM4 cable allows for a distance of 328 feet (100 meters).

At 14.025 GBd:

OM1 cable reaches up to 49 feet (15 meters).

OM2 cable extends to 115 feet (35 meters).

OM3 cable supports a distance of 328 feet (100 meters).

OM4 cable allows for 410 feet (125 meters).

At 8.5 GBd:

OM1 cable reaches up to 69 feet (21 meters).

OM2 cable extends to 164 feet (50 meters).

OM3 cable supports a distance of 492 feet (150 meters).

OM4 cable allows for 623 feet (190 meters).

Long-Wave Transceiver (DS-SFP-FC32G-LW):

SMF Cable Distance:

At 1310 nm, it can support distances of up to 10 kilometers, depending on the cable quality and type.

At 1550 nm, the reach can be extended even further, up to 40 kilometers or more, making it suitable for long-haul applications.

Optical Performance:

Average Transmit Power (dBm):

For both transceivers, the maximum average transmit power is 2.0 dBm, while the minimum is -6.2 dBm. This ensures sufficient power to drive the optical signal over the desired distance without causing excessive interference or signal degradation.

Average Receive Power (dBm):

The maximum average receive power is 2.0 dBm, and the minimum is -8.2 dBm. The transceivers are designed to be sensitive enough to detect weak optical signals while remaining robust against strong signals that could potentially damage the receiver.

Fiber Loss Budget (dBm):

For Short-Wave Transceiver (DS-SFP-FC32G-SW):

At 8 Gbps: 1.68 dBm (OM2), 2.04 dBm (OM3, OM4, OM5).

At 16 Gbps: 1.63 dBm (OM2), 1.86 dBm (OM3, OM4, OM5).

At 32 Gbps: 2.02 dBm (OM2), 1.86 dBm (OM3, OM4, OM5).

For Long-Wave Transceiver (DS-SFP-FC32G-LW):

The fiber loss budget varies depending on the wavelength and cable type, but is typically designed to support long-distance transmission with minimal signal loss.

Physical Dimensions: Measuring 8.5 x 13.55 x 56.5 millimeters, these transceivers are compact in size, allowing for high-density installations in network equipment. Their small form factor ensures that they can be easily integrated into existing systems without taking up excessive space.

Operating Temperature Range: Both transceivers are designed to operate within a temperature range of 0°C to 40°C, making them suitable for use in a variety of indoor data center environments. Additionally, they can be stored within a temperature range of -40°C to 85°C, providing flexibility in handling and storage.

Auto-Sensing Capability for Seamless Integration:

One of the key features of the Cisco 32 Gbps Fibre Channel SFP+ transceivers is their ability to automatically sense the data rate of the connected device. Whether it's an 8 Gbps, 16 Gbps, or 32 Gbps Fibre Channel port, these transceivers can seamlessly adapt to the required speed, eliminating the need for manual configuration. This auto-sensing functionality simplifies network deployment and management, reducing the risk of human error and ensuring optimal performance across the network.

Reliability and Compatibility:

Cisco is renowned for its commitment to quality and reliability, and the 32 Gbps Fibre Channel SFP+ transceivers are no exception. Built with high-quality components and adhering to strict industry standards, these transceivers offer exceptional reliability and durability, even in demanding data center environments. Moreover, they are fully compatible with the MDS 9000 series platforms, as well as other Fibre Channel - compliant devices, ensuring seamless integration into existing network infrastructures.

In conclusion, the Cisco 32 Gbps Fibre Channel SFP+ transceivers offer a comprehensive and high-performance solution for data center networking. With their dual options, extensive specifications, auto-sensing capabilities, and proven reliability, they are well-suited to meet the diverse needs of modern data centers, enabling efficient and reliable high-speed data transmission. Whether it's for short-reach or long-reach applications, these transceivers are a reliable choice for organizations looking to enhance their network performance and stay ahead in the digital age.
